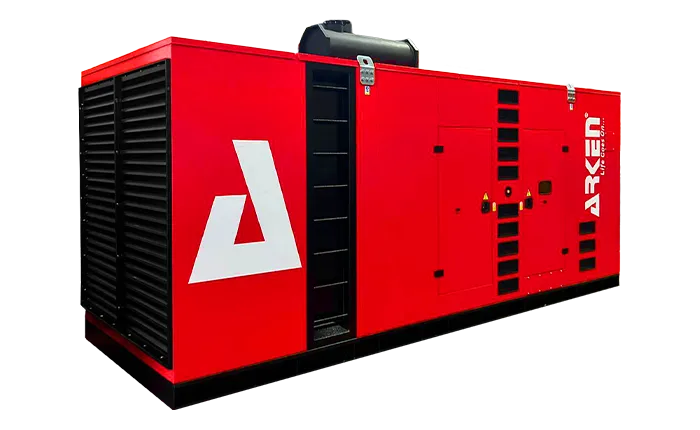

Дизельный генератор ARK-P 15 N5 с двигателем Perkins 403A-15G1 обеспечивает 13 кВА (prime) и 14 кВА (standby), предлагая надёжное и экономичное электропитание для жилых и коммерческих объектов.
Альтернатор NEKRA ARK 164C с электронным AVR, точностью ±1% и THD <5% гарантирует стабильное и чистое напряжение.
Соответствует стандартам ISO 8528 / ISO 3046, уровень шума 68 дБА, гарантия 2 года / 1000 часов.
| Brand | Perkins |
| Power PRP [kW] | 12 |
| Model | 403A-15G1 |
| N° of Cylinders / Valves | 3/6 |
| Engine Type | 4 |
| Displacement [lt] | 1.496 |
| Aspiration | Natural |
| Bore[mm] x Stroke[mm] | 84x90 |
| Compression Ratio | 22.5:1 |
| Air Filter | Heavy Duty |
| Cooling Method | Water Cooled (water + %50 antifreeze) |
| Total Coolant Capacity (lt) | 6 |
| Governor Type | Mekanik |
| Electrical System | 12VDC |
| Battery Charger Current | 15A |
| Oil Capacity [lt] | 6 |
| Exhaust Gas Flow PRP [m3/min] | 2,7 |
| Exhaust Gas Temp. [°C] | 445 |
| Air Flow PRP [m3/min] | 1.1 |
| Cooling Air Flow PRP [m3/min] | 0.61 |
| Starter Power (kW) | 2 kW |
| Standard Battery Voltage [V] | 12VDC |
| Standard Battery Capacity | 1x60Ah |
| Standard Battery Type | Maintenance-Free Lead Acid |
| Brand | Nekra |
| Model | ARK 164C |
| Voltage | 400 /230 VAC |
| Number of Phase | 3 |
| Power Factor | 0.8 |
| Number of Poles | 4 |
| Connection Type | Star |
| Bearing | Single |
