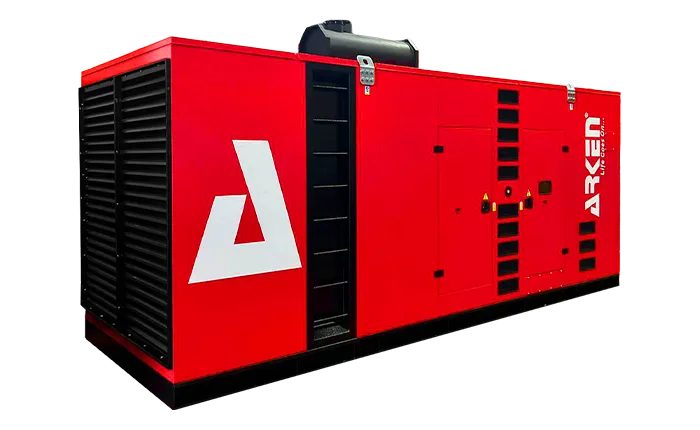

Генератор ARK-P 400 S5 оснащён двигателем Perkins 2206A-E13TAG2 и обеспечивает 360 кВА (prime) и 400 кВА (standby).
Альтернатор STAMFORD с ±1% регулировкой напряжения и THD <5% гарантирует стабильное и чистое электроснабжение.
Соответствие ISO 8528 / ISO 3046 и гарантия 1 год / 1000 часов делают эту модель надёжным решением для промышленного и коммерческого применения.
| Brand | Perkins |
| Power PRP [kW] | 305 |
| Model | 2206A-E13TAG2 |
| N° of Cylinders / Valves | 6/24 |
| Engine Type | 4 |
| Displacement [lt] | 12.5 |
| Aspiration | Turbocharged - Air to air cooled |
| Bore[mm] x Stroke[mm] | 130x157 |
| Compression Ratio | 16.3:1 |
| Air Filter | Heavy Duty |
| Cooling Method | Water Cooled (water + %50 antifreeze) |
| Total Coolant Capacity (lt) | 51.4 |
| Governor Type | ECM (Engine Control Modul) |
| Electrical System | 24VDC |
| Battery Charger Current | 70A |
| Oil Capacity [lt] | 40 |
| Exhaust Gas Flow PRP [m3/min] | 56,6 |
| Exhaust Gas Temp. [°C] | 630 |
| Air Flow PRP [m3/min] | 21.3 |
| Cooling Air Flow PRP [m3/min] | 654 |
| Starter Power (kW) | 7,8kW |
| Standard Battery Voltage [V] | 24VDC |
| Standard Battery Capacity | 2x105Ah |
| Standard Battery Type | Maintenance-Free Lead Acid |
| Brand | Stamford |
| Model | S4L1D-E |
| Voltage | 400 /230 VAC |
| Number of Phase | 3 |
| Power Factor | 0.8 |
| Number of Poles | 4 |
| Connection Type | Star |
| Bearing | Single |
